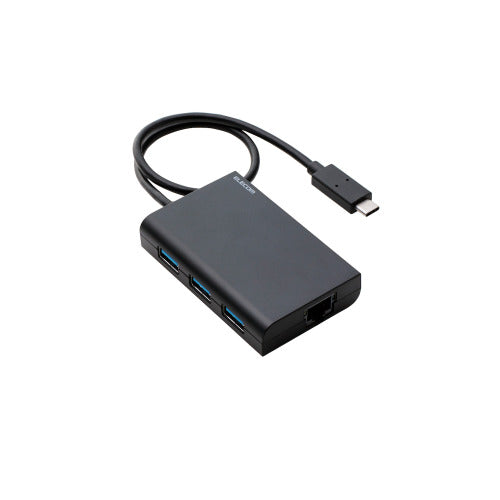

LAN Adapter EDC-GUC3H Series
6990
LAN Adapter EDC-GUC3H Series
6990
Wired LAN port is not, can use only the best! Plug in to the Type-C port equipped PC USB port also scarce thin, USB3.1 Gigabit LAN adapter with a USB hub capable of high-speed network communication.
Specifications
| The correspondence OS (Windows) | Windows 10 (32bit/64bit)/8.1 (32bit/64bit)/7 (32bit/64bit) (SP1) ?Windows10/8.1 gives a driverless response |
| The correspondence OS (Mac) | macOS Catalina 10.15/macOS Mojave 10.14/macOS High Sierra 10.13/macOS Sierra 10.12/OS X El Capitan 10.11/OS X Yosemite 10.10 |
| Wired standard | IEEE 802 .3 (10BASE-T)/IEEE802.3u (100BASE-TX)/IEEE802.3ab (1000BASE-T)/IEEE802.3x (Flow Control) |

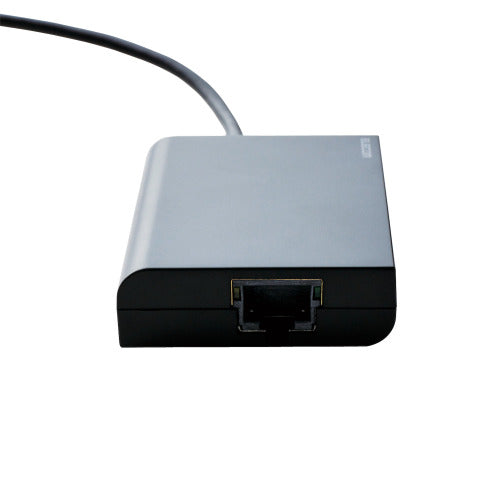

| Wired connector | RJ-45 (Auto MDI/MDI-X) X 1 port, Auto-Negotiation correspondence |
| Cable transmission speed (theoretical value) | 10/100/1,000Mbps |
| Access method | CSMA/CD |
| Correspondence protocol | IPv4, IPv6 |
| USB interface | USB3.1 Gen1 (USB3.0) |
| Maximum transfer speed | USB3.1 Gen1(USB3.0) supermarket speed/5Gbps, USB 2.0 High Speed/480Mbps, USB1.1 full speed/12Mbps |
| Universal Serial Bus port (the device side) | Type-C (male) X 1 port |

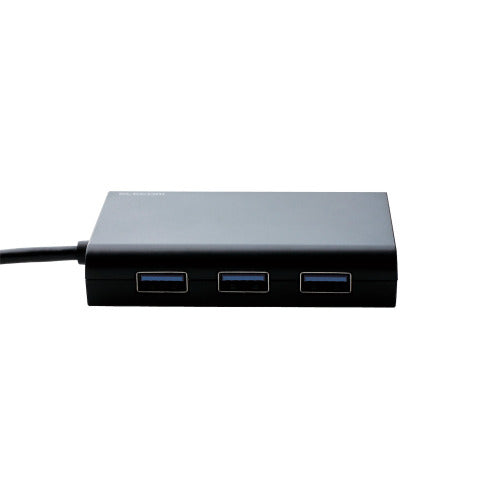

| Universal Serial Bus port (the HUB side) | Type-A (female) X 3 port USB3.0/2.0/1.1 |
| Feedable electric current | Total 3 ports about less than 520mA (less than each port about 170mA) |
| Other functions | Jumbo frame |
| Input Voltage | DC 5V |
| Power consumption | 1.9W |
| Consumption electric current | About 380mA (we do not include USB Bus powered) |
| Power supply method | USB Bus powered |
| Dimensions (fuku X D X H) | (W)About 80* (D) about 50* (H) about 15mm (except cable part) |
| The USB cable head | About 30cm (we remove connector part) |
| Weight | About 50 g |
| Housing materials (color) | Plastic (Black) |
| Operating environment | Temperature: 0-40 degrees Celsius, humidity: 85% or less (but thing without dew condensation) |
| Various acquisition standards | VCCI class B |
| Laws and ordinances correspondence | EU RoHS order conformity (10 materials) |
