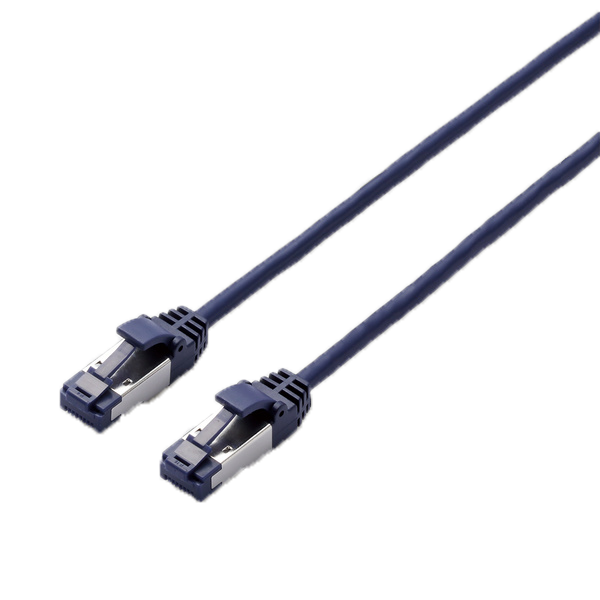

CAT 8 LAN Cable LD-OCTST Series (Slim) 1m, 2m, 3m, 5m, 10m
2790
CAT 8 LAN Cable LD-OCTST Series (Slim) 1m, 2m, 3m, 5m, 10m
2790
Double structure of the nail crease prevention! High-speed optical communications to correspond to the optimal next-generation 40 Gigabit Ethernet. Narrow place to adopt the best slim cable to the wiring in such a fast, stable category 8 corresponding nail crease prevention LAN cable to realize a network environment.
Specifications
| Color: | Blue metallic |
| Interface: | RJ-45 connector |
| Environmental consideration matter | EU RoHS order conformity (10 materials) |
| Standard: | CAT8 correspondence (10BASE-T/100BASE-TX/1000BASE-T/1000BASE-TX/10GBASE-T/40GBASE-T) |
| Line speed | 40Gbps |
| Transmission band | 2,000MHz |
| Cable length | 1m, 2m, 3m, 5m, 10m |
| Cable thickness | 4.1mm |
| The number of the cores | 8 cores |
| Connection method | Straight connection |
| Twist vs. core line (twisted pair cable) | Yes |
| Shield | ?(ScTP/2 ju foil tape shield) |
| jujikaizai | X |
| Outside sheath (film) materials | PVC |
| With length mark | X |
| Conductor constitution | Twist line (30AWG) |
| Connector presence | With both ends connector |
| Mold processing connector | Yes |
| Slim connector | Yes |
| Connector with prevention of nail buckling up cover | Yes |
| Cable rewind function | X |
| Package form | Box + inner tray |
| Connector which is not broken of nail | Yes |
| PoE | Yes |
