Docking Station Type-C DST-C16/17SV/EC Series
7990
Docking Station Type-C DST-C16/17SV/EC Series
7990
Specifications

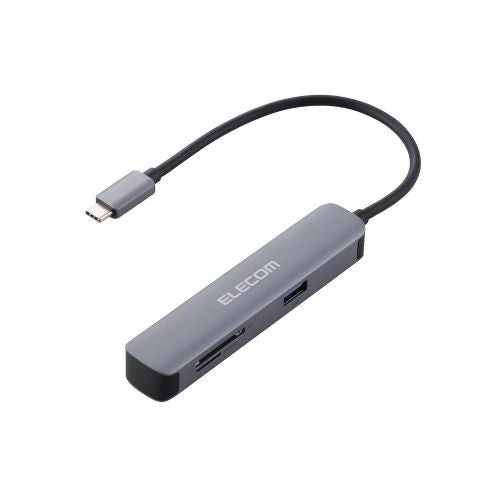

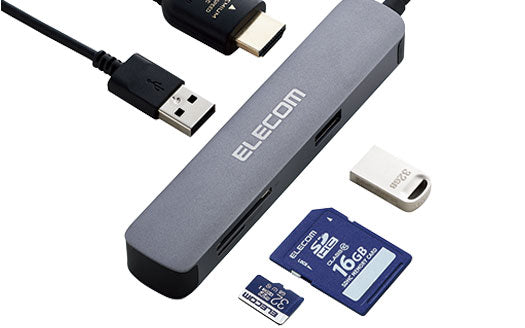

C16SV
| Supported OS | Windows10, macOS Catalina(10.15), iPadOS 14 ?Update to latest version of each OS and installation of service pack may be necessary. |
| Connector Specifications (up stream) | USB3.1 Type-C<Gen1(5Gbps)>, DisplayPort Alt mode () non-output-adaptive at the time of USB 2.0 connection with USB 2.0 compatibility as for movement (USB 2.0 time Video) |
| Universal Serial Bus port (down stream) | USB3.1 Gen1 Standard-A female X 2 <supply capability level: USB 3.0 standard-A: Total maximum 1.8A> |
| Video output port (down stream) | HDMI (up to 4K@30Hz) X 1 |
| Card reader (down stream) | Supported Media (1) (SD Memory Card): SD(HighSpeed,ProHighSpeed,Class2,4,6,10), SDHC(Class2,4,6,10,UHS-I), SDXC(UHS-I), TransFlash, microSD(UHS-I), microSDHC(Class2,4,6,10), microSDXC, miniSD (we need adapter for exclusive use of road according to ?) |
| Power supply method | Bus powered |
| Cable length | About 0.18m (we do not include connector) |
| Color: | < Silver > |
| Dimensions: | About 110*22.5*16mm (we do not include cable) |
| Weight | About 50.0 g (we include cable) |
| Operating environment | 5-40 degrees Celsius/10-90% RH |

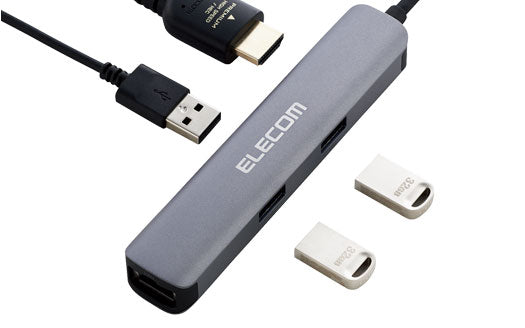

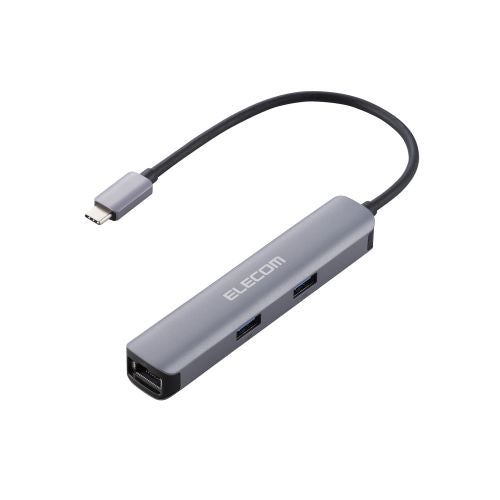

C17SV
| Supported OS | Windows10, macOS Catalina(10.15), iPadOS 14 ?Update to latest version of each OS and installation of service pack may be necessary. |
| Connector Specifications (up stream) | USB3.1 Type-C<Gen1(5Gbps)>, DisplayPort Alt mode () non-output-adaptive at the time of USB 2.0 connection with USB 2.0 compatibility as for movement (USB 2.0 time Video) |
| Universal Serial Bus port (down stream) | USB3.1Gen1 Standard-A female X 3 <supply capability level: USB 3.0 standard-A: Total maximum 2.1A> |
| Video output port (down stream) | HDMI (up to 4K@30Hz) X 1 |
| LAN port (down stream) | RJ-45 (1000BASE-T/100BASE-TX/10BASE-T) |
| Power supply method | Bus powered |
| Cable length | About 0.18m (we do not include connector) |
| Color: | < Silver > |
| Dimensions: | About 114.5*22.8*16.8mm (we do not include cable) |
| Weight | About 50.5 g (we include cable) |
| Operating environment | 5-40 degrees Celsius/10-90% RH |
